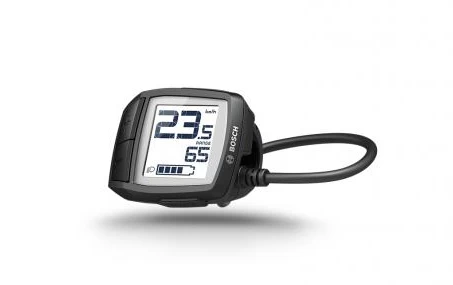

2017 Bosch Purion E-Bike Display Performance Line

Small, lightweight and easy to operate: The compact Bosch Purion Performance eBike Display combines control and display element in one housing.

Mounting and functionality

Where is the Bosch Purion Display mounted?

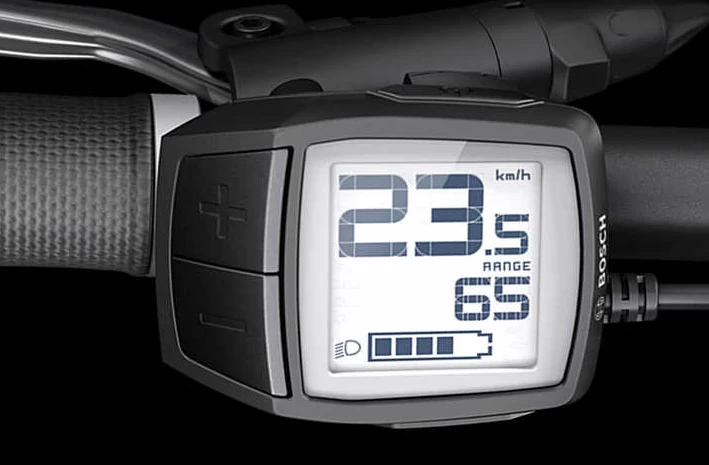

• The Bosch Purion Performance Display is mounted on the side, directly next to the left handlebar grip.
• It is suitable for all Bosch eBike Performance systems from model year 2014.
• It is also compatible with Bosch Active and Bosch Performance CX.

What buttons does the Bosch Purion display have?

• Bosch Purion – the new eBike compact display – is controlled by a total of 4 buttons.
• These are the power button, the walk button, and the plus and minus buttons („+“ and „-„).
• „+“ and „-“ buttons have multiple assignments.

How does Bosch Purion distinguish between multiple assignments?

• Bosch distinguishes between short , medium and long key presses for multiple assignments.
• Short – under 1 second
• Medium – between 1 and 2.5 seconds
• Long – over 2.5 seconds

How are the main functions operated?

• „+“ or „-“ button pressed briefly changes the assistance level (ECO, TOUR, SPORT, TURBO).
• +“-button pressed medium-long (1 – 2,5s) switches on the lighting.
• Pressing the „+“ button for a medium-long time (>2s) switches the lighting off.
• A long press on the „-“ key corresponds to the mode key and operates the tacho functions (TRIP, TOTAL, RANGE).
• A press on the WALK button activates the push assist, which is controlled by the „+“ button.

What information can the Bosch Purion eBike display show?

• Speed
• Battery charge level
• light function
• TRIP – the daily riding distance, this can be reset.
• TOTAL – the total mileage of the motor, this is not resettable.
• RANGE – the remaining range indicator, this calibrates automatically every 1-2 minutes and gives the range at current consumption.
• Other service indicators, these can be found in the enclosed manual.

What are the differences between the Bosch Purion and the Bosch Intuvia eBike Display?

Bosch Purion

• Bosch Purion is one-piece from the display indicator to the motor connector plug. This eliminates sources of interference such as contact connections.
• Langfinger cannot simply steal the Purion display without destroying it.
• In case of damage, Bosch Purion is replaced as a complete component at the same price as the Bosch Intuvia display.
• After the repair is completed, you can be sure that no „other“ display component will cause a failure as consequential damage.
• Bosch Purion has an easy-to-use battery compartment with two button cells of the type „2016“.
• Unfortunately, the Purion does not have a USB output for charging a smartphone.

Bosch Intuvia

• The Bosch Intuvia display is multi-part and consists of a display, display holder and control unit. These components are individually connected to each other, creating contact surfaces that are prone to maintenance.
• Theft protection can be increased, but not 100% ensured, by using a screw-in fixing screw.
• While riding, the Bosch Intuvia Display can be used to power another device (e.g. smartphone, MP3 player).
• The Bosch Intuvia eBike Display can be replaced as a single display if damaged.
• Bosch Intuvia has a permanently installed, non-replaceable lithium-ion battery.



More information about the Bosch Purion eBike on-board computer.

What are the advantages of the side-mounted Bosch Purion eBike display?

• The Bosch Purion eBike Display is a 2-in-1 solution where the display is also the control unit.
• This gives you more space in the center of the handlebars to mount a handlebar bag or smartphone holder, for example.

Which Bosch display can I use on my Bosch eBike from model year 2014?

• All Bosch displays are upward and downward compatible.
• This means the exchange between Purion, Intuvia or Nyon display is possible among each other as desired.
• In case of uncertainty, system software should be updated.

For whom is the Bosch Purion Performance Line eBike display suitable?

• The Bosch Purion display is particularly suitable for eBikers who want to do without functions such as navigation, fitness tracker or a centrally located display unit and instead benefit from a tidy handlebar with a purist and ergonomically designed display.
• Maximum riding pleasure, concentration on the essentials and stability of the components are the focus.

The Bosch Purion e-bike display is also available for Bosch Active Line drives.
-Bosch Purion e-bike display Active Line
