FIT 2.0 e-bike charging port – replace a defective charging port on your e-bike with the original spare part. The charging port is available in two versions. The 2Fix version with two attachment points and rectangular dimensions and the square 4Fix version with four screw connections and a rubber cap. The motor connections are also different. The 2Fix charging port has a 2-pin connector and the 4Fix charging port has an 8-pin connector. Both charging ports are compatible with the FIT 2.0 e-bike system.
FEATURES OF THE FIT 2.0 CHARGING PORT
- Original FIT replacement charging socket
- for e-bikes with Fit 2.0 system
- Cable length: approx. 10 cm
- Protected with shrink-wrap

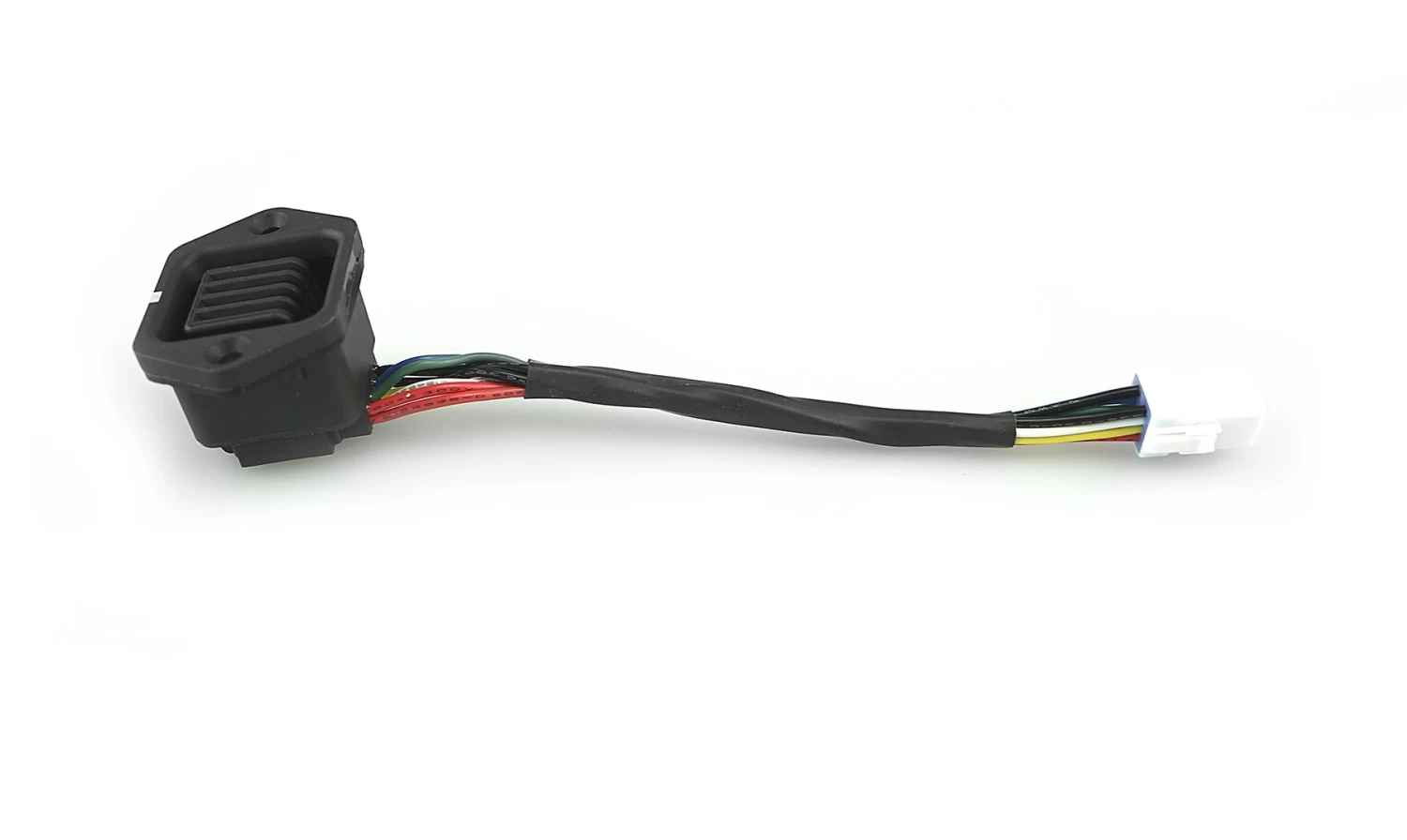

- 2Fix version – 40 x 28mm – JST JWPF 8-pin female connector

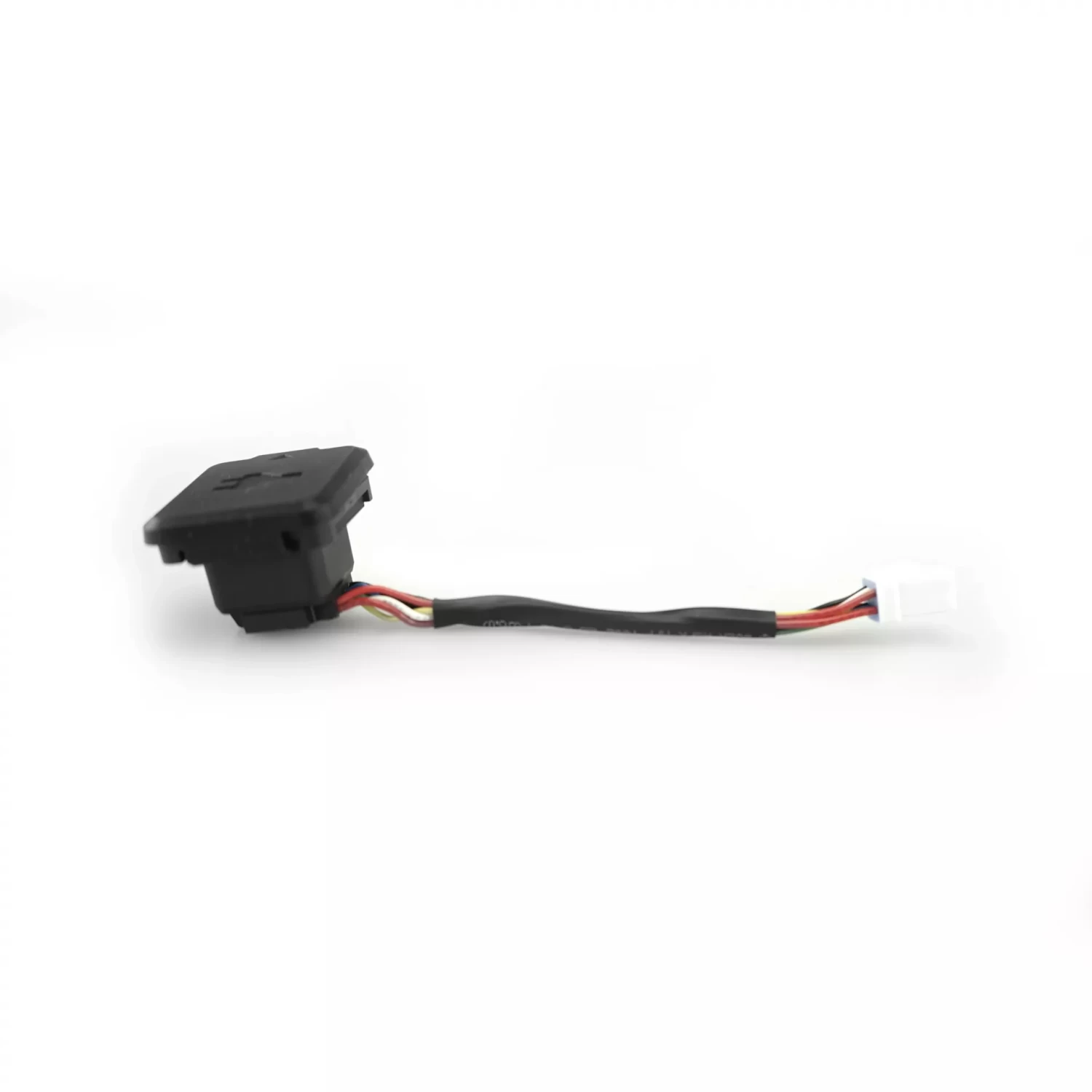

- 4Fix version – 35 x 35mm – JST JWPF 2-pin female connector
Note: Before ordering, please check which charging socket you have installed on your e-bike. If you are unsure our customer service will be happy to help you.
| Manufacturer: | FIT E-Bike System |
| FIT E-Bike System Integration: | FIT 2.0 |
| Weight: | 26 g |
| Item: | FIT 2.0 charging port |
| Scope of delivery: | 1x FIT 2.0 charging socket |
| Colour: | black |
| Measurements: | 2Fix: 40 mm x 28 mm | 4Fix: 35 mm x 35 mm |
| Compatibility: | for E-Bikes with FIT 2.0 System |
| Maker’s ref. no.: | 2Fix: 500080 | 4Fix: 500039 |
| Material: | plastic |
| Mounting: | 2Fix: with two screws | 4Fix: with four screws |
| Connection: | 2Fix: 1x FIT Ladeport, 1x JST JWPF 8-Pins Female | 4Fix: 1x Higo Micro A Female, 1x JST JWPF 2-Pins Female |
| Cable length: | 100 mm |
